The hot dip galvanization is the process of coating iron or steel with a thin zinc layer, by passing the steel through a molten bath of zinc at a temperature of around 460 °C.
When exposed to the atmosphere, pure zinc reacts with oxygen to form zinc oxide, which further reacts with carbon dioxide to form zinc carbonate, a dull grey, fairly strong material that stops further corrosion in many circumstances.

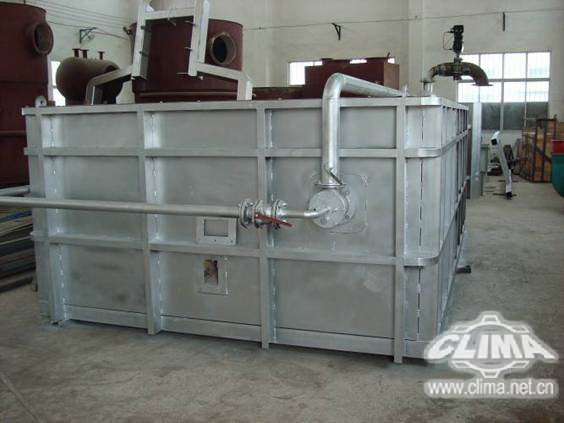

Hot dip galvanizing stove
Hot dip galvanizing stove
Hot dip galvanizing stove
Controlling part
Configuration of continuous annealing furnace
Basic design and parameters
wires
24
gap of the wires
35mm
Heating
propane, 21000KK/Nm3
Propane consumption
30-40Nm3/ton wire (calculation on 3.1mm wire)
Hot dip galvanizing temperature
440-470 degree centigrade regulation
Temperature precision
+/- 2 degree centigrade
Two sections temperature control system
propane burner
Stove Structure
length
6.25m
width
3m
galvanizing inner tank dimension
L: 2.8m , W: 1.25m , H: 0.95m
The stove are covered by steel completely. The inner parts are installed with most advanced fire resistant materials. It is very safe. There is no chance for any lead leakage. There are one layer heat insulation material in the outside. It reduces heat loss.
It equipped with U type tower. Press roller adopts pure iron roller with auto left device.
The wire will be scrapped by medium when it leaves the galvanizing tank. It pass through wind blow and cooling by cold water
Production Line Configuration
Continuous annealing furnace
Propane heating
Temperature control precision, propane burner, overall dimension and more.
Wire surface processing
Cold water washing Smokeless acid washing Washing tank, acid washing tank, assistant plating tank and more.
Hot dip galvanizing
Basic design and parameter Hot dip galvanizing stove
And more specification.
Wire collecting
Horizontal wire collecting system
And more specification.
