Hot dip galvanizing wire production flowchart
(The information are generally based on our successful projects, we can adjust the specification and provide the solution that you need about the hot dip galvanizing wire production line)
• The hot dip galvanizing production line consists of wire laying, surface processing, hot dip galvanizing, wire collecting. It is an automatic and continuous production line and is an ideal hot dip galvanizing line with easy and safe operation, good quality products, high efficiency.
• Working procedure: put wire rod in the wire feeding stand. Feed wire rod pass through continuous annealing furnace via the pipes. After annealing, wash the oxide material on the surface of the wire by pure water. Wash one more time the wire surface with acid (HCl) to clean oxide material. Wash with hot water to clean rudimental acid from wire surface. Put wire into chemical tank for coating chemicals (Zncl2, Ancl2). Dry wire after being coated with chemicals. Hot dip galvanizing, plating one layer of nice zinc in 450 ? zinc tank (made by ceramic material). Collecting wire after hot dip galvanizing. It is horizontal type wire collecting system.

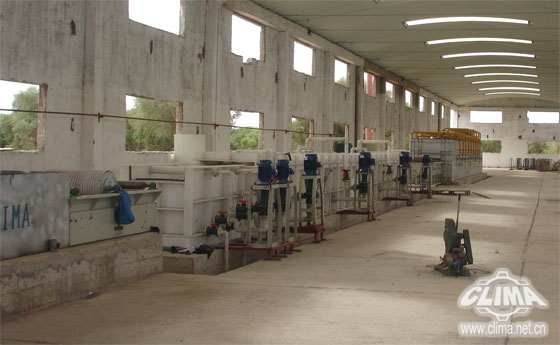

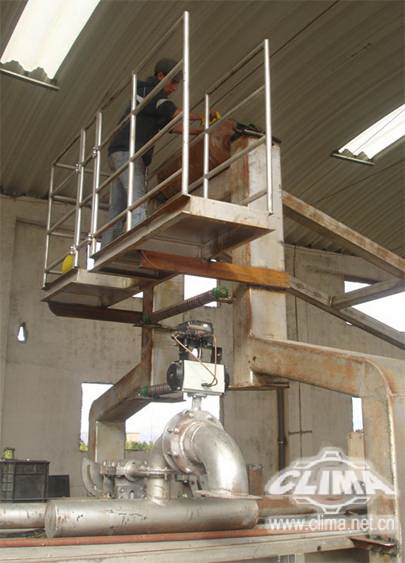

Installation pictures of our hot dip galvanizing wire production line
Technical flow chart
Basket type Wire laying frame ?propane continuous annealing furnace---cold water washing----smokeless acid washing —— cold water washing —— assistant coating tank —— drying —— wire separating---hot dip galvanizing ?horizontal wire collecting
|
|
|
Continuous type annealing furnace |
|

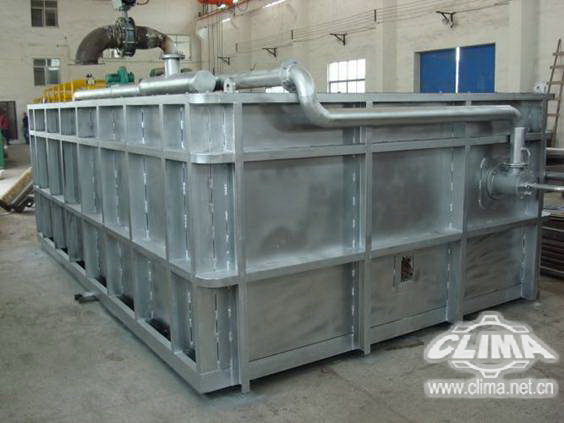

Hot dip galvanizing stove |
|
|
|

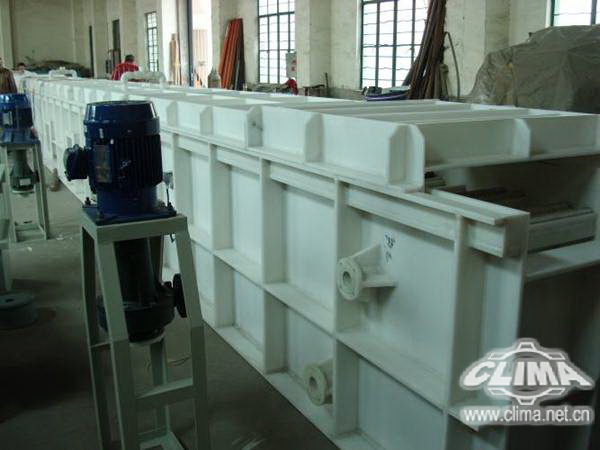

Water fall sealing acid smokeless washing line |
|

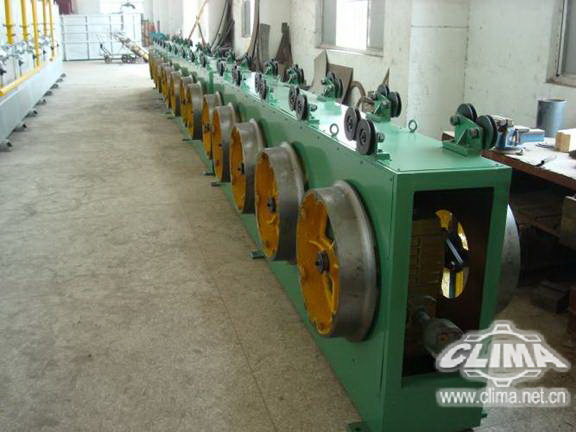

Wire collection frame |
|
|
|
annealing furnace and wire collection frame |
|
Finished products |
Project: wire hot dip galvanizing Production Line with natural gas as fuel
| Production method |
continuous annealing furnace |
| Raw material |
local carbon wire rod from diameter 1.5mm to 4.8mm . average diameter: 3.5mm |
| Elongation ratio |
bigger than 12% |
| Galvanizing weight |
100 -300g /m2 |
| DV value |
20 -35m /min |
| Wire lines |
max 30 lines (6 lines for stand by) |
| Propane heating |
two sides heating |
| Working hours per year |
7200hours |
| Raw materials |
low carbon steel Q195, Q235 |
| Annealing furnace temperature |
950C (can be regulated) |
| Heating method |
flame (with higher efficiency) |
| Propane consumption |
30-40Nm3/T |
| Yearly output |
bigger than 5000T (for 3.5mm ) |
| Galvanizing production line size |
105m x 2.5m |
| Total production line weight |
90000kg |
| Power supply |
electrical power 135kw |
|
